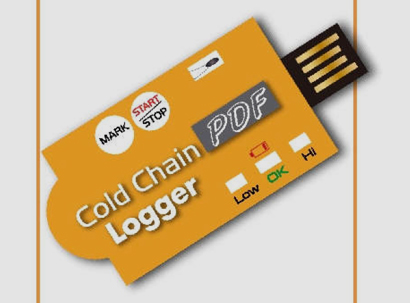

COLD CHAIN TEMPERATURE PDF LOGGER 88182 WITH 21CFR PART 11 COMPLIANCE
- Plug & Play temperature data logger with USB 2.0 connector
- No software & driver required for programming& download
- Automatically generate a PDF report while plugged into PC
- Low cost single use with accurate thermistor sensor
- Completely programmable by users for maximum flexibility
- Includes: language, sampling interval, start delay, alarm delay, unit, alarm range, alarm type, password and user name.
- Compact, light, IP65 waterproof & flat design fits into any package
- File encrypted technology to secure data integrity
- 4 LEDs provide instant status indicator: REC, Low Bat., High temperature alarm & Low temperature alarm
- Large memory capacity, 8192 readings.
- Powered by 1 pc Cr2032 battery
- Mark key to provide 8 marking during transition period
- PDF file contains summary, graph and detailed data list
- EN12830, FDA 21 CFR part 11 and RoHS compliance
Record time and temperature for vaccines, biologics, pharmaceuticals and other perishable & temperature sensitive products>
- Model : 88182
- Temp. Range : NTC thermistor, -30~70°C, -22~158° F
- Temp. Resolution : 0.1°c, 0.1° F
- Temp. Accuracy : +/-0.5°C
- Logging Type : Single Use
- Pouched size : 105(L)*55(W)*2.5(T) mm
- Unpouched size : 73(L)*33(W)*2.5(T) mm
- Sampling points : 8192 readings
- Shelf Life : 12 months shelf time
- Operating Temp : -30~70°C (Logging status); room temp.(PC status)
- Operating RH% : Humidity< 80%
- Storage Temp. : 40~85°C
- Storage RH% : Humidity< 90%
- Weight : ~10g
- Battery : 1 PC 3.0V CR2032 (installed before shipment)
- Sampling Interval : 30 seconds, 5, 10,30,60,90, 120 minutes
- Start delay : 0, 5,30,45,60, 90,120 minutes
- Alarm range : -20- -10ᵒC, -10~0ᵒC, 2-8ᵒC, 0-15°C, 0-25°C, 15-25°C, others
- Alarm delay : 0, 5,30,45,60, 90,120 minutes
- Alarm type : Single Event, Cumulative, Disable
- Operation keys : 2 Keys (Start/Stop key & Mark key)
- LED indicator :REC, Low Bat., High alarm, Low alarm
