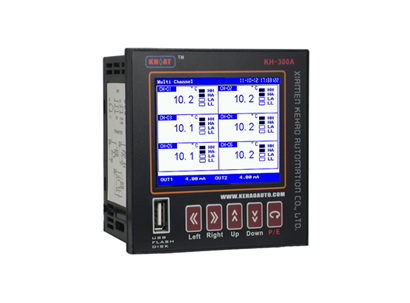

Khoat Color Paperless Recorder KH-300-AB/AL
- With No.Of Channels upto 6
- Adopts 3.2 inch TFT color LCD, wide visual angle, high lightness and contrast.
- English Menu designed. Easy and clear screen, rich information, kind human-meter operation screen, user-friendly, easy operation
- Adopt SMT technology, more concise designed.
- Universal input for multi channels, adopt photoelectric isolation among channels in order to avoid the interference among channels.
- T.C and RTD input adopts nonlinear amendment with high accuracy and stable performance.
- Huge capacity storage: 8MB for long time record
Accuracy: ±(0.2%FS+1)digit
Power supply: 100-240VAC; 24VDC
Input Signal: T.C: K, S, E, J, T, B,N, R, WRe526, WRe325
RTD: PT100, CU50, CU100
Linear voltage: 0-5V, 1-5V
Linear current: 0-10mA, 4-20mA
Frequency input:0-5KHZ, one channel
Specials: 0-20mV,0-60mV, 0-100mV, 0-500mV
Output Module: Relay alarm output, 4-20mA Retransmission output, RS485 Communication port, 24VDC Aux. Power Supply output RS 32 Printing port, USB Port
Record time: Flexible setting interval time: 1s, 2s, 3s, 4s….3600s
Record Time: (45days x Record interval time) % No of channels
Environmental temperature: 0-50°C
Environmental humidity: 0-85%RH
size: 96×96×70mm
